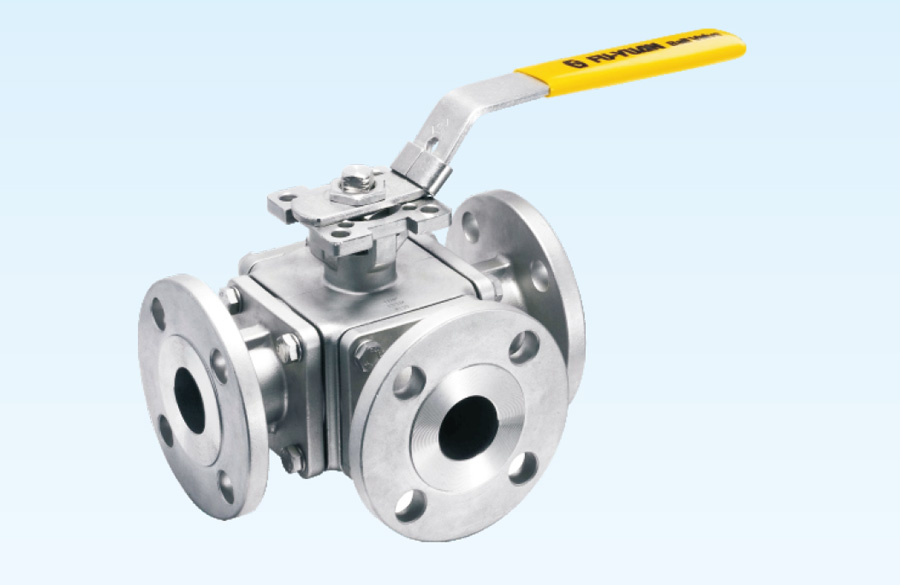

DN100~DN150(4"~6")3-WAY/4-WAY三通/四通法蘭球閥

4-BF PN16/40

·L型、T型、X型流向L-PORT&T-PORT&X-PORT

·防爆防静电中軸/全流BLOW-OUT PROOF STEM/FULLPORT

·適用温度範圍TEMPERATURE RANGE:-20 to 180℃

·法蘭尺寸参照FLANGE DIMENSIONS:

                       EN 1092-1TYPE21PN16/40(RF SF)

·檢查舆测試TEST:EN-12266-1

4-BF CLASS 150#

·L型、T型、X型流向L-PORT&T-PORT&X-PORT

·防爆中軸/全流BLOW-OUT PROOF STEM/FULLPORT

·適用温度範圍TEMPERATURE RANGE:-20 to 180℃

·法蘭尺寸参照FLANGE DIMENSIONS:ASMEB16.5 CLASS150

·檢查舆测試TEST:API-598
