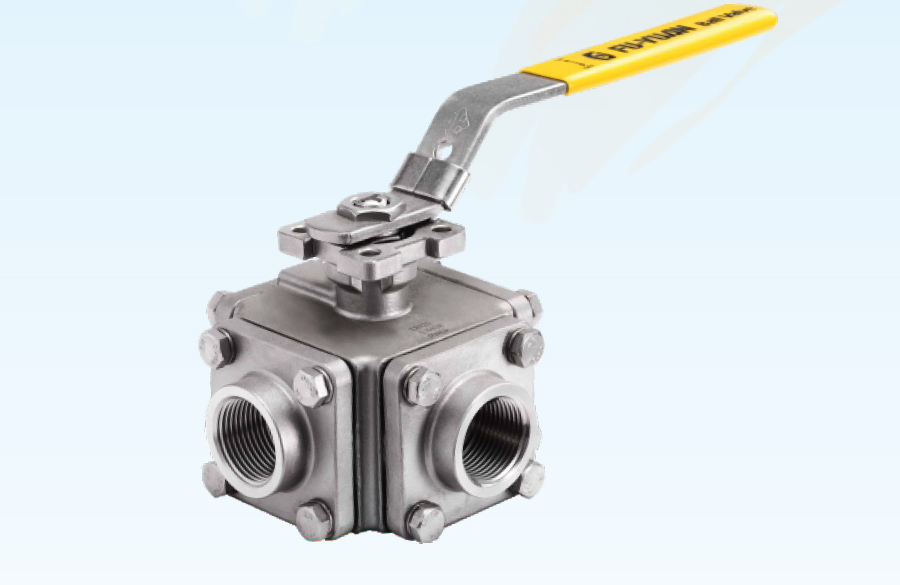

牙口三通/四通式全流球閥

● 防爆中軸/全流 BLOW-OUT PROOF STEM

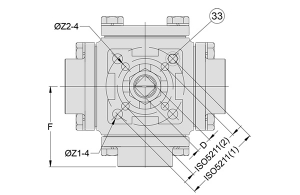

● ISO 5211平臺直接安装ISO 5211 DIRECT MOUNTING PAD

● 工作壓力 WORKING PRESSURE(CWP):DN8~DN100 1000psi

    PN63 bar

● 適用温度範圍 TEMPERATURE RANGE:-20 to 180℃

● 掛鎖装置 LOCKING DEVICE

● 有四個閥座(球墊座)THERE ARE FOUR SEATS

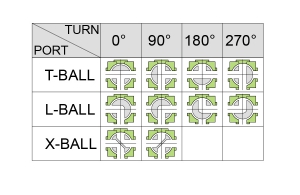

● L型埠或T型埠或X型埠可用360°旋轉把手

 L-PORT OR T-PORT OR X-PORT AVAILABLE 360°POTARY

● 管螺紋参照PIPE THREAD IN ACCORDANCE

            ASME B1.20.1(NPT)

            DIN 259/DIN 2999

            ISO 228/ISO 7-1

            BS 21（PT）/BS EN 10226（R）
