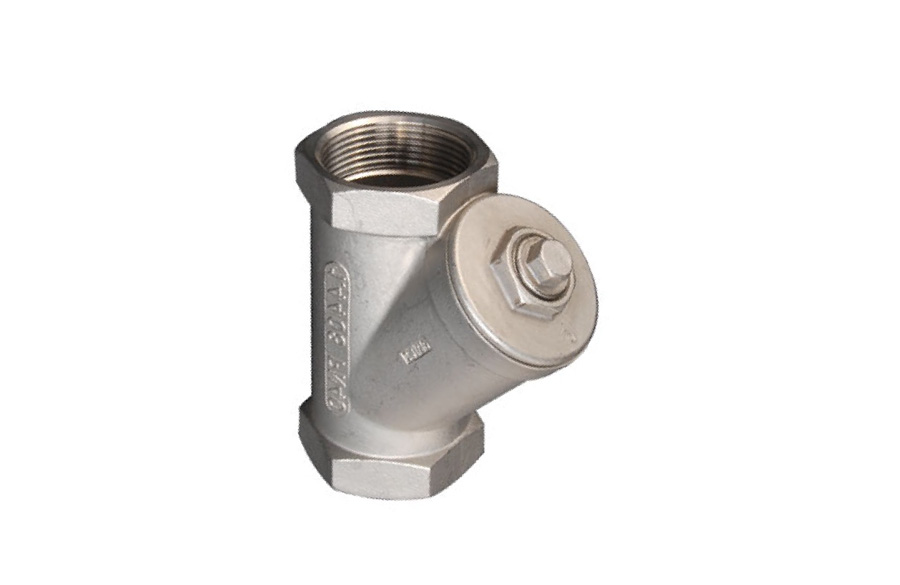

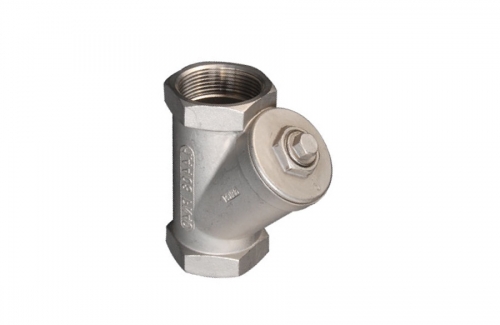

V-Y 1/4"~3"(DN8~DN80)

連接方式END CONNECTIONS:牙口 THREADED END

·工作壓力：WORKING PRESSURE(CWP): 600WOG

·適用温度範圍 TEMPERATURE RANGE:-20 to 180℃

·管螺紋参照 PIPE THREADIN ACCORDANCE

            ASME B1.20.1(NPT)

            DIN 259/DIN 2999

            ISO 228/ISO 7-1

            BS 21（PT）/BS EN 10226（R）
