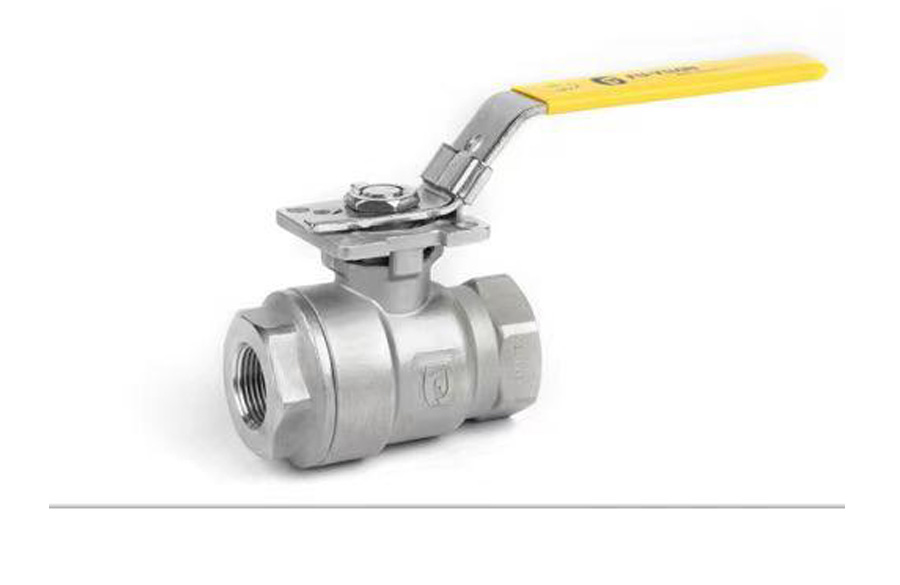

V-236D 3000WOG 6000WOG
● 防爆中軸/减流 BLOW-OUT PROOF STEM
● 工作壓力WORKING PRESSURE(CWP):DN8~DN50 3000psi
● 適用温度範圍 TEMPERATURE RANGE:-20 to 180℃
● 掛鎖装置LOCKING DEVICE
● 管螺紋参照 PIPE THREAD IN ACCORDANCE
ASME B1.20.1(NPT)
DIN 259/DIN 2999
ISO 228/ISO 7-1
BS 21（PT）/BS EN 10226（R）
