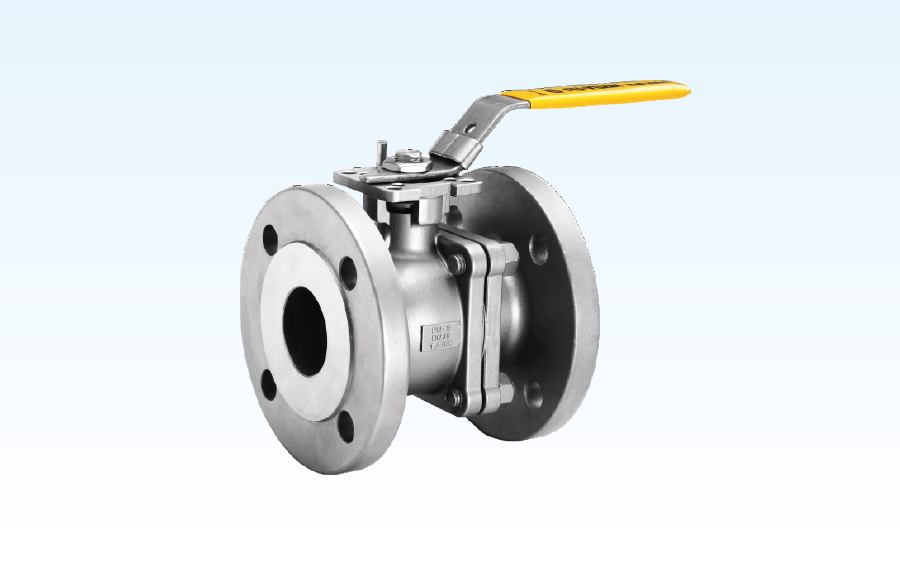

V-2F DN15~DN100(1/2"~4)"

●    防爆中軸/全流BLOW-OUT PROOF STEM/FULL PORT

●    带ISO5211平臺安装ISO 5211 MOUNTING FLANGE

●    適用温度範圍TEMPERATURE RANGE:-20 to 180℃

V-2F PN16/PN40

●    設計製造DESIGN:DIN EN ISO-17292

●    法蘭尺寸参照FLANGEDIMENSIONS: EN 1092-1 TYPE21  PN16/40(RFSF)

●    法蘭長度FACE TO FACE: EN 558-1F4/F5 (DIN 3202 F4/F5)

●    檢查舆測試TEST:EN-12266-1

V-2F 150# 300#

●    設計製造DESIGN:API 608

●    法蘭尺寸参照F LANGE DIMENSIONS: ASME B16.5  CLASS 150/300

●    法蘭長度FACE TO FACE:ASME B16.1

●    檢查舆測試TEST: API-598

V-2F 10K

●    設計製造DESIGN:API 608

●    法蘭尺寸参照FLANGE DIMENSIONS: JIS B2238 10K

●    法蘭長度FACE TO FACE:JIS B2002
