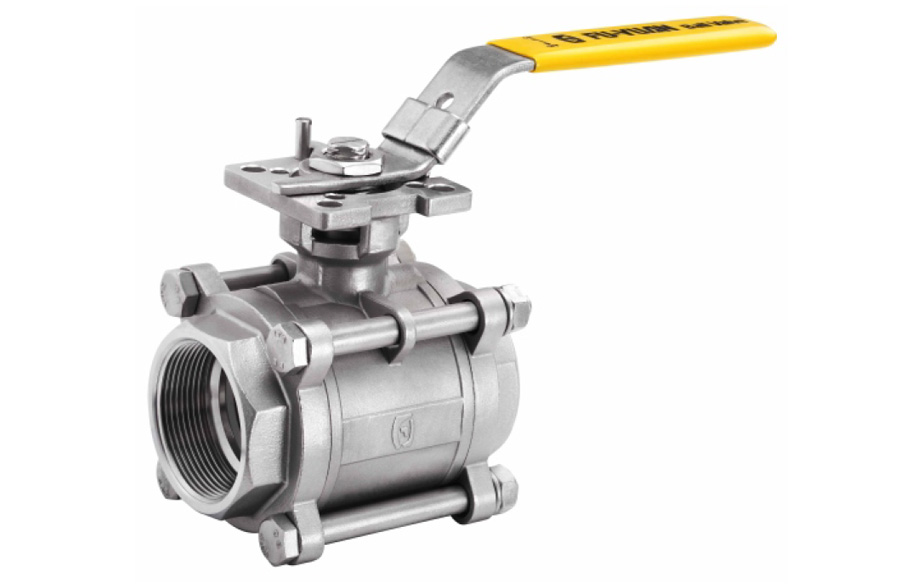

全流三片式高平台球阀

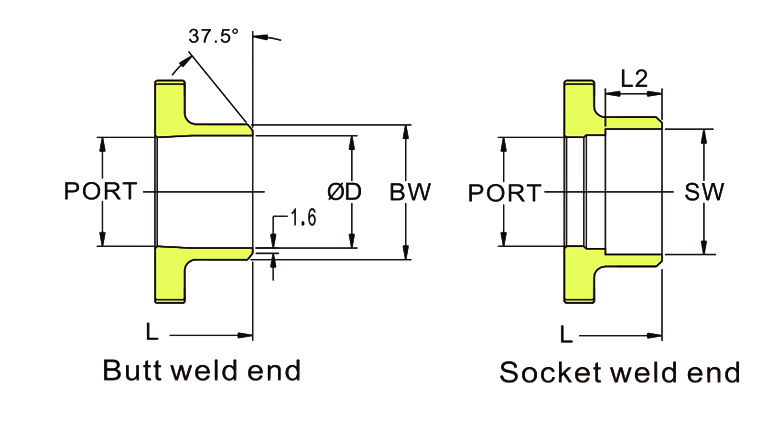

● 連接方式END CONNECTIONS:牙口/套焊/對焊
THREADED END,SOCKET WELD END,BUTT WELD END
● ISO 5211平臺直接安装ISO 5211 DIRECT MOUNTING PAD
● 防爆中軸BLOW-OUT PROOF STEM
● 工作壓力WORKING PRESSURE(CWP):
DN8~DN50 1000psi
DN65~DN80 800psi
● 適用温度範圍 TEMPERATURE RANGE:-20 to 180℃
● 掛锁装置 LOCKING DEVICE
● 管螺紋参照 PIPE THREADIN ACCORDANCE
ASME B1.20.1(NPT)
DIN 259/DIN 2999
ISO 228/ISO 7-1
BS 21（PT）/BS EN 10226（R）
