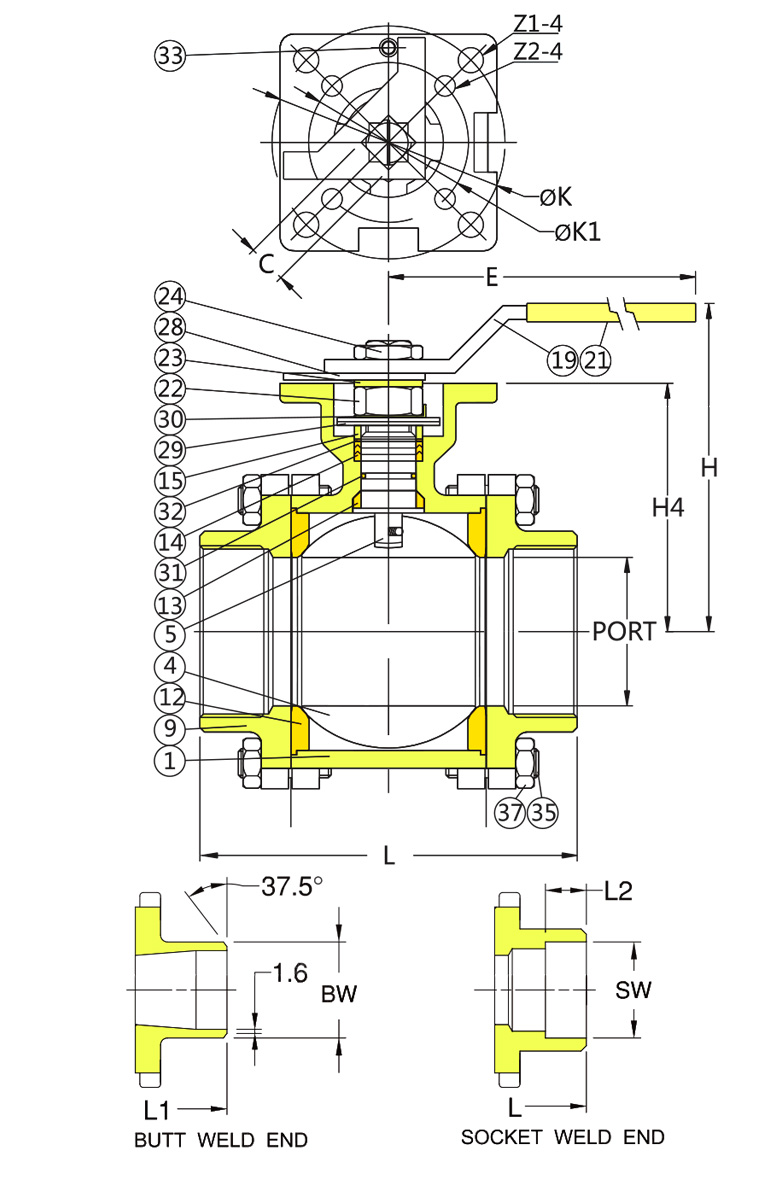

·連接方式END CONNECTIONS:牙口/套焊/對焊

 THREADED END,SOCKET WELD END,BUTT WELD END

·ISO5211高平臺ISO5211 DIRECT MOUNTING PAD

·防爆防静电中軸BLOW-OUT PROOF STEM

·工作壓力：WORKING PRESSURE(CWP):

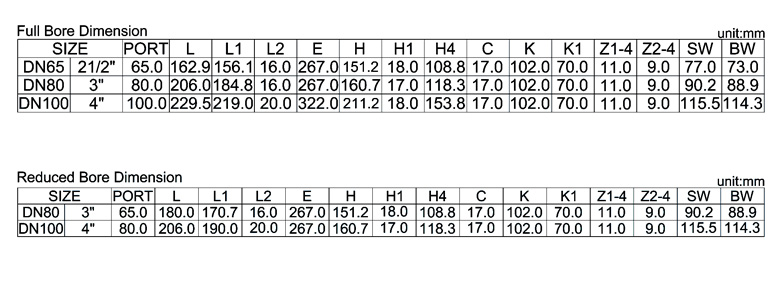

V-355B DN65~DN100 1000psi PN63 bar

V-355R DN80~DN100 1000psi PN63 bar

·適用温度範圍TEMPERATURE RANGE:-20 to 180℃

·掛锁装置 LOCKING DEVICE

·管螺紋参照 PIPE THREAD IN ACCORDANCE

             ASME B1.20.1(NPT)

            DIN 259/DIN 2999

            ISO 228/ISO 7-1

            BS 21（PT）/BS EN 10226（R）
